Installing Flashing on a Metal Roof in Colorado Springs

If you’re researching installing flashing on a metal roof in Colorado Springs, there’s a good chance you’re already dealing with one of two situations. You’re either planning a new metal roof and want it done right the first time, or you’ve seen what happens when a roof looks fine from the yard but leaks around a wall, vent, chimney, or ridge after the next Front Range storm.

That usually comes back to flashing. Not the panels themselves. Not the color of the metal. Not the brand printed on the paperwork. The small transition pieces are what decide whether water sheds cleanly off the roof or gets driven into the structure by hail, wind, snowmelt, and repeated freeze thaw cycling at Colorado Springs elevation.

Homeowners and property managers across the Front Range often focus on the visible parts of a metal roof. Roofers don’t. The vulnerable spots are always the intersections, terminations, and penetrations. That’s where good work lasts and shortcut work fails.

Why Flashing Is Your Roof’s First Line of Defense

When a homeowner invests in metal roofing, they’re usually buying durability. They want a roof that can handle hail season, intense sun, winter storms, and the kind of wind exposure you get from Colorado Springs up through the Front Range. What protects that investment isn’t just the panel system. It’s installing flashing on a metal roof in Colorado Springs with exact measurements, clean laps, proper fastening, and the right sealant strategy.

According to Roofing Contractor’s technical guidance on flashings and penetrations for metal roofs, flashings and penetrations account for nearly 80 percent of all reported roof leaks. That tells you where failures usually start. They start where the roof changes direction, meets a wall, wraps around a vent, or transitions at an edge.

Small parts decide big outcomes

A sheet of standing seam metal can look perfect and still leak if the flashing underneath or beside it is wrong. In Colorado, that risk gets worse because water doesn’t just fall straight down. It blows sideways, freezes, thaws, backs up at snow lines, and finds any gap left by loose closures, poor overlap, or incompatible fasteners.

That’s why homeowners comparing materials should also look at the full roof assembly, including trim metals, sealants, and details behind the visible finish. If you’re planning a system for a home, reviewing local residential roofing in Colorado Springs options alongside flashing design is a smarter move than choosing panels alone.

Practical rule: If flashing is treated like finish work instead of water-control work, the roof is already on the wrong path.

Colorado conditions punish shortcuts

Generic guides tend to make flashing sound simple. Cut a piece, fasten it down, add sealant, and move on. That isn’t how reliable metal roofing gets built in this climate. Here, the details have to survive hail impact, UV exposure at elevation, and seasonal expansion and contraction.

Corrosion matters too. Even a well-shaped flashing detail can fail early if the wrong metals are combined or protective finishes get damaged during installation. Homeowners who want to understand the basics of protecting metal from corrosion will get a better sense of why installers are careful about coatings, cut edges, and compatible materials.

Essential Tools and Materials for a Flawless Install

A clean flashing install starts before the first cut. On metal roofing, bad prep shows up later as oil canning near trim, loose laps, distorted bends, failed sealant lines, and fasteners that don’t hold through a Colorado winter. For anyone serious about installing flashing on a metal roof in Colorado Springs, the tool list and material list matter as much as the labor.

What belongs on the truck

Some tools are basic. Others separate a rough install from a precise one.

• Aviation snips: Needed for accurate cuts at corners, notches, and endwall transitions.
• Hand seamer or brake: Used to form crisp bends, hems, and returns without warping the metal.
• Tape measure and fine-tip marker: Flashing errors usually start with bad layout.
• Screw gun with clutch control: Prevents overdriven fasteners and crushed washers.
• Metal-compatible fasteners: Corrosion-resistant screws or nails are standard for flashing work.
• Butyl tape and approved sealant: These aren’t interchangeable and shouldn’t be guessed at on site.
• Foam closure strips: Critical where profile panels need a sealed contour at transitions.
• PPE: Gloves, eye protection, traction footwear, and fall protection.

Cut edges on flashing are sharp enough to slice through cheap gloves quickly. Anyone handling trim stock should understand grip, cut level, and dexterity before buying PPE. A good comprehensive guide to safety gloves is useful if you’re comparing glove styles for sheet metal work.

Materials that hold up in Colorado

Flashing material has to match the roof system and the environment. In Colorado Springs, that means thinking beyond appearance. The combination of hail, snow, moisture, UV exposure, and thermal cycling punishes thin, poorly coated, or mismatched metals.

What usually works best:

• Factory-finished flashing matched to the roof system: Best for appearance and compatibility.
• Corrosion-resistant fasteners: These are essential around exposed trim details.
• Butyl tape for laps and junctions: Better for long-term compression seals than relying on caulk alone.
• Foam closures matched to the panel profile: A generic closure is often worse than none because it creates false confidence.
• Cleats or movement-accommodating details: Important where long runs need to move with temperature changes.

If you’re considering a patch or partial repair without the right tools, review the limits of do-it-yourself roof repair before touching metal trim. Flashing is one of the least forgiving places to learn by trial and error.

Metal Flashing Material Comparison for Colorado Climates

What works in practice and what doesn’t

On-site, the best installs usually share the same habits:

• Matched systems: The flashing, fasteners, closures, and sealants are chosen to work together.
• Pre-bent details: Crews don’t try to force complicated shapes by hand on the roof.
• Controlled fastening: Screws are driven snug, not buried.
• Dry staging: Materials are kept clean so sealants and tapes can bond properly.

What fails is just as predictable. Installers mix metals, use whatever screws are on hand, skip closures because they seem minor, and rely on surface caulk to fix layout mistakes. That kind of work may survive the first storm. It rarely survives repeated Colorado seasons.

Good flashing work looks boring. The lines are straight, the laps are deliberate, and nothing looks forced.

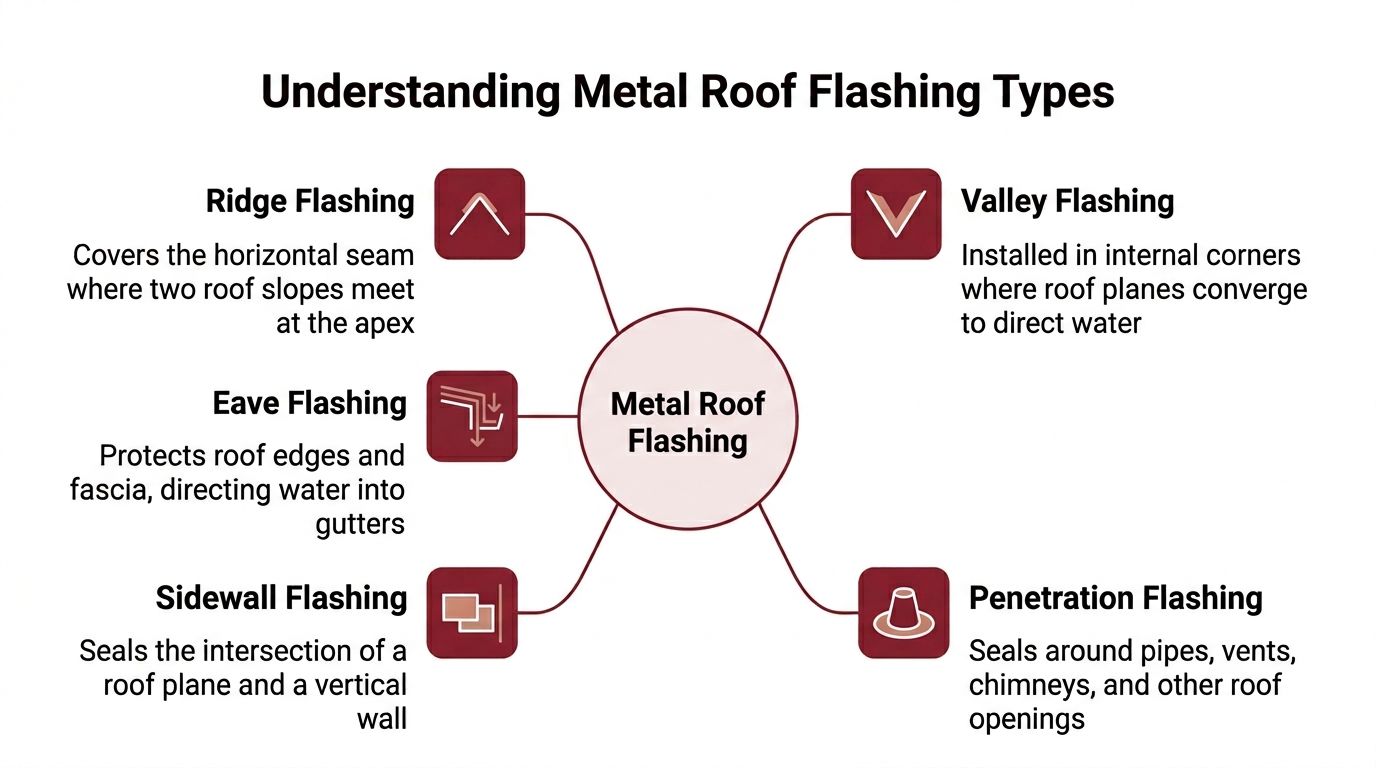

Understanding the Different Types of Metal Roof Flashing

Most homeowners hear “flashing” and picture one piece of metal around a chimney. In reality, installing flashing on a metal roof in Colorado Springs means fitting several different components, each designed for a specific water path. If one detail is wrong, the rest of the roof can still perform poorly.

Roof to wall flashing

This category gives property owners the most trouble because roof-to-wall intersections see concentrated runoff and wind-driven rain. There are two common forms.

Sidewall flashing runs where a sloped roof meets a vertical wall along the side. It has to shed water down the roof while staying integrated with the wall cladding. If it sits in front of siding instead of behind it where the assembly requires, water finds the back side.

Endwall flashing sits where the upslope end of the roof terminates into a wall. This is a leak-prone detail because water is moving directly toward the wall instead of past it. According to MetalCoffeeShop’s guide to flashing a metal roof to a wall, endwall flashing accounts for 25 to 30 percent of metal roof leaks when installed improperly, and the installation requires butyl tape, foam closure strips, a minimum 6-inch overlap, and specific screw patterns that still allow for thermal movement.

That level of detail tells you why roof-to-wall transitions can’t be improvised.

Rake, ridge, and eave flashing

These details don’t always get the same attention as valleys and penetrations, but they matter.

At the rake, flashing protects the gable edge from wind-driven moisture and helps terminate the panel cleanly. In exposed Front Range locations, poorly secured rake trim often starts vibrating or lifting before the panels themselves show distress.

At the ridge, the flashing has to cap the roof peak while managing ventilation and weather exposure. If closures are wrong or the ridge detail is over-fastened, the assembly can leak or restrict necessary movement.

At the eave, flashing directs water off the roof edge and into the gutter path. If the drip edge relationship is wrong, runoff can track backward into fascia or underlayment instead of off the house.

Valleys and penetrations

A valley flashing acts like a built-in drainage channel. It handles the runoff from two roof planes and has no tolerance for sloppy cuts or sealant-only fixes. When crews cut panels too tight, leave rough edges, or fail to maintain a clean water path, debris and ice can trap moisture exactly where the roof is most vulnerable.

Penetration flashing includes boots and formed metal details for pipes, vents, skylights, and chimneys. These are some of the hardest pieces to get right because they combine movement, sealant, fasteners, and geometry in a small area. A penetration may look sealed on day one and still fail after enough sun exposure and seasonal movement if the wrong boot or fastening pattern was used.

A metal roof doesn’t leak because water is clever. It leaks because a detail gave water a path.

Why one flashing type can’t substitute for another

DIY repairs often go wrong. A homeowner sees trim metal and assumes metal is metal. It isn’t. Endwall flashing can’t replace sidewall flashing. A valley piece can’t be cut down and used around a penetration. A closure made for one panel profile won’t seal another.

Each flashing type is shaped around a specific function:

• Sidewall flashing: Handles runoff parallel to a wall
• Endwall flashing: Stops and redirects water at a wall termination
• Valley flashing: Carries concentrated water between roof planes
• Rake flashing: Protects roof edges from lateral weather exposure
• Penetration flashing: Seals around openings that interrupt the panel field

When a roof leak keeps coming back in the same location, it’s often because the wrong flashing type was installed in the first place, then hidden with extra sealant.

Mastering Measurement Cutting and Sealing Techniques

The craft behind installing flashing on a metal roof in Colorado Springs comes down to fit, sequence, and restraint. Most failures don’t happen because someone forgot to add metal. They happen because the metal was measured poorly, cut roughly, lapped backward, or sealed like a patch instead of assembled like a drainage system.

Accurate layout prevents forced flashing

Good crews spend time measuring because metal doesn’t forgive bad assumptions. A flashing piece that’s even slightly off can telegraph the mistake across the whole detail. That usually leads to widened screw holes, bent edges, stretched sealant lines, or a hem that never seats correctly.

The goal is simple. Mark clearly, verify the wall or roof angle, and account for hems, returns, and overlaps before cutting. On site, “measure twice, cut once” isn’t a slogan. It’s how you avoid rebuilding a custom piece on the roof in the wind.

A few habits matter:

• Use a stable reference point: Don’t measure from a crooked panel edge if you can measure from the structure.
• Mark bend lines separately from cut lines: Crews mix these up more often than they admit.
• Dry-fit before sealing: Once butyl is compressed, reusing the same piece is asking for trouble.

Clean cuts and crisp bends

Flashing should sit where it’s intended without fighting the substrate. Hand snips work well for detailed corners and notches. A brake or hand seamer helps form straighter hems and cleaner bends than freehand shaping on the roof.

What doesn’t work is tearing through coated metal with the wrong tool, overheating cut edges, or leaving jagged burrs that interfere with fit and coating performance. Rough cuts don’t just look bad. They create tiny gaps where water, debris, and corrosion can start.

Field note: If a piece only fits after repeated bending and flattening, remake it. Distorted flashing rarely turns into reliable flashing.

Laps, fasteners, and water-shedding order

Flashing installation follows the same principle as the rest of roofing. Water should always be directed over the piece below, never toward a seam that invites backflow. That means working from the bottom up and keeping every overlap oriented to shed water naturally.

According to Roof Medic’s guide to metal roof flashing, flashing pieces must be overlapped by at least 4 inches, and corrosion-resistant screws or nails should be spaced between 12 and 24 inches apart. That same guidance notes the need for spacer blocks or continuous cleats with butyl tape or sealant to accommodate the thermal movement built into metal roofing systems.

Those details matter in Colorado because the roof can see sharp daily and seasonal temperature swings. Metal moves. Flashing has to move with it or stay sealed while allowing that movement.

A practical installation sequence usually looks like this:

1. Set the lower piece first: The lower flashing establishes the drainage path.
2. Apply butyl where the lap is designed to seal: Don’t substitute random caulk beads for a compressed tape joint.
3. Place the upper piece over the lower piece: Keep the water path uninterrupted.
4. Fasten in a consistent pattern: Secure the piece without pinning every part of it so tightly that movement is impossible.

Butyl tape versus exposed sealant

These get confused constantly. They are not the same thing.

Butyl tape is best where two surfaces lap together and you want a continuous compressed seal. It stays protected inside the joint and performs well when the detail is designed around it.

Exposed sealant has its place at select terminations, corners, and manufacturer-specific details, but it shouldn’t be the entire waterproofing plan. In Colorado Springs, surface sealants take a beating from UV, snow, and expansion.

Movement has to be designed in

One of the biggest mistakes in flashing work is fastening every edge as if rigidity equals strength. On a metal roof, too much restraint can create buckling, pulled fasteners, and stressed seams. The better approach is to secure the detail where it should hold and allow movement where the assembly needs it.

That may involve cleats, proper slotting where specified, or following the system’s fastening pattern instead of inventing one on site. Tight, neat, and over-constrained are not the same thing.

Installing Flashing on a Metal Roof for Front Range Weather

Standard instructions are a starting point. They are not enough for installing flashing on a metal roof in Colorado Springs if the goal is long-term performance. Front Range roofs deal with hail, high wind exposure, elevation-driven UV, and repeated winter cycling that opens weaknesses fast.

Why Colorado needs more than generic detailing

A flashing detail that performs in a milder climate can fail here because the stress is different. General guidance often skips over local conditions like up to 150 freeze-thaw cycles annually and regional hail exposure. In Colorado Springs and El Paso County, those aren’t side issues. They shape how flashing should be selected, sealed, and fastened.

The more useful local approach is reinforcement, not just compliance. According to Western States Metal Roofing’s endwall flashing guidance, experts recommend additional sealants and hail-rated #14 screws spaced 8 to 10 inches apart to meet local wind uplift demands of up to 120 mph in El Paso County, and those upgrades can reduce hail-related damage by 40%.

That isn’t overbuilding. It’s building for where the roof sits.

Details that matter in the Pikes Peak region

In practice, local flashing work should account for:

• Ice backup potential: Endwalls, valleys, and low transitions need stronger water control where melt and refreeze can occur.
• Wind-driven rain: Wall intersections and exposed gable edges need tighter, cleaner termination details.
• Hail impact: Heavier, better-supported trim details hold shape better after storms.
• UV exposure at elevation: Exposed sealants and damaged coatings break down faster.

For roofs with known storm wear or aging transitions, a scheduled roof tune-up in Colorado Springs can catch loose trim, failed sealant, and early flashing movement before those issues turn into interior damage.

Generic flashing advice usually assumes ordinary weather. Colorado Springs doesn’t offer ordinary weather.

What works better locally

The strongest flashing installations in this market tend to use matched trim metal, disciplined sealing at laps, and fastening patterns that reflect local wind exposure instead of the minimum someone found in a broad national guide. Roofers also pay closer attention to closures, cleats, and transitions where snowmelt and ice can sit longer.

What fails is familiar. Light trim stock gets dented and opened by hail. Wide fastener spacing lets edges chatter in wind. Surface caulk gets treated like a substitute for proper overlap. The roof may pass a quick visual inspection from the driveway, but the next severe storm tells the full story.

Common Mistakes and When to Call the Professionals

A lot of homeowners assume flashing problems are obvious. Water comes in near a chimney, so the chimney flashing must be bad. Sometimes that’s true. Often it isn’t. The harder leaks are the ones that show up well away from the failed detail, after water has traveled under panels, behind trim, or along a roof-to-wall joint.

That makes installing flashing on a metal roof in Colorado Springs one of the riskiest areas for guesswork.

The mistakes that keep causing callbacks

The common failures aren’t mysterious:

• Reverse laps: One overlap facing the wrong direction can funnel water under the system.
• Wrong closure strips: A closure that doesn’t match the panel profile leaves capillary paths open.
• Overdriven screws: Crushed washers and distorted metal don’t seal better. They fail faster.
• Flashing installed after siding instead of integrated behind it: Water gets a path into the wall assembly.
• Too much dependence on exposed caulk: Surface sealant ages. Water-shedding geometry matters more.

According to the source material summarized in this flashing troubleshooting video reference, 60% of callbacks stem from mismatched foam closure strips, which allow water wicking, and advanced thermal imaging can detect 95% of sub-surface moisture before catastrophic failure. That’s important because the leak you see inside may be the last stage of a much earlier flashing problem.

Why ghost leaks are so frustrating

Some leaks show up only during wind-driven rain. Others appear after snow starts melting. Some vanish for months and then return. Those are the calls that frustrate owners because the roof “already got fixed.”

Usually, one of three things happened:

1. The visible gap was sealed, but the underlying flashing geometry stayed wrong.
2. The closure or lap detail was mismatched to the panel profile.
3. Movement opened a path that wasn’t obvious during a quick inspection.

If a leak comes and goes with weather direction or temperature, don’t assume it’s minor. Intermittent leaks often point to a detail issue, not a one-time event.

When professional help is the right call

There are times to stop troubleshooting and bring in a licensed roofer. Complex wall transitions, standing seam systems, multi-family rooflines, storm claim documentation, and persistent leak tracing all fall into that category. So do roofs where someone has already attempted patch work and the original installation details are hidden under sealant and replacement screws.

If you’re weighing whether the problem has moved beyond a simple fix, this guide on signs your roof needs licensed Colorado roofers is worth reviewing. Flashing failures don’t usually stay isolated. Once water gets past the trim, repairs can extend into decking, insulation, siding, and interior finishes.
